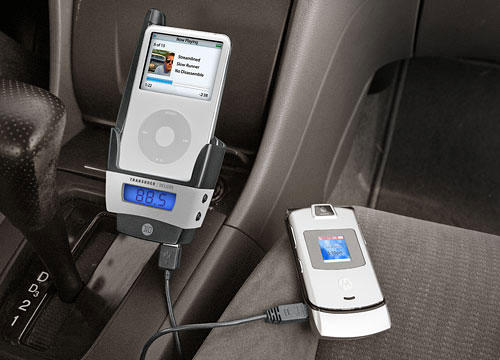

Experience the ultimate in iPod enjoyment on the road with the new DLO TransDock Deluxe. Broadcast your iPod music over your car FM stereo, and play your iPod movies, TV shows and other video downloads on your in-car video system with the included AV cable. The Deluxe Edition of our award-winning TransDock also features a compact Remote Control with steering-wheel cradle so you can safely control your iPod and keep your hands on the wheel while your iPod is cradled and charging in the TransDock.
Deluxe Edition includes:

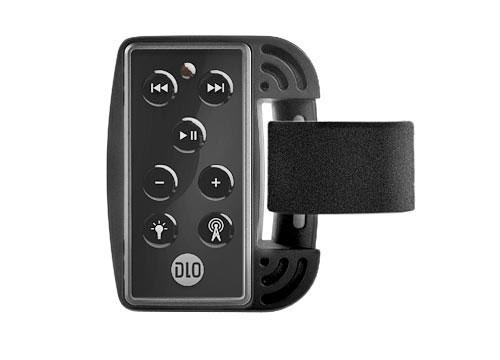

- RF Remote control with steering-wheel cradle
- 6ft. AV cable for use with TransDock directly to your in-car AV system
- Selection of color LED displays: Amber, Blue and Frosty White
TransDock features:
- Optimized for iPod with Video (30, 60 and 80 GB)
- Play, charge and cradle your iPod in your car
- Powerful, integrated antenna for even stronger iPod transmission to your car's FM radio
- Audio/Video Output for showing iPod downloads on your mobile video system
- AV-Out also for use with cassette adapters and car audio inputs
- Aux-In jack for transmitting another MP3 player, laptop, or gaming system over your car's stereo
- USB connection to simultaneously charge your cell phone or other electronic device
- Two interchangeable faceplates included; others available for purchase online soon
- No installation required; simple to move from car to car
- Four available presets to assign as desired
- Inserts included for use with iPod nano, iPod 4G and iPod mini
Technical Specifications
FM Transmitter
- Modulation: FM Stereo
- RF Output Frequency Range: 88.1 - 107.9 MHz
- Default Preset Frequencies (MHz):88.1, 88.5, 94.9, 100.9, and 107.9
- Frequency Adjustment: 0.1 MHz per step
- Frequency Response: 50Hz ~ 18KHz
- Transmitter Power: 1.5 Watts
- Transmitter Range: Up to 27 feet (9M)
- Tuning: Digitally controlled crystal oscillator
- Stereo Separation: >40d
- International frequency compatible
User Settable Features: backlight timer, backlight level, backlight color, six user settable presets, audio sensitivity level (3 levels)
- FCC ID#: UIX0701A
Power
- Input Voltage: 12 – 16 VDC
- Input Current: <400mA @ DC12V~16V when charging
Connectors
- Direct Output: 3.5mm Stereo Mini jack
- Direct Input: iPod AV Out / Stereo Mini jack
- USB Output: will charge appliances up to 500mA (USB-Atype connector)
- 6'AV Cable: 3.5mm stereo to RCA cable
Temperature
- Storage Temperature: -4° to 122° F (-20° to 50 ° C)
- Operating Temperature: -14° to 104 ° F (-10° to 40 ° C)
Requirements
- 3G iPod, 4G iPod, 5G video iPod, iPod nano or iPod mini (any Dock Connector based iPod)
- 12 Volt Auto Power Adapter / Cigarette Lighter Adapter
RF REMOTE
- Operating Range: Up to 15ft
- Transmission Method: Radio Frequency
- Frequency: 433.92 MHz + 1 - 100KHz
- Remote Battery: Panasonic CR2025 3V
- FCC ID#: UIX0703B
