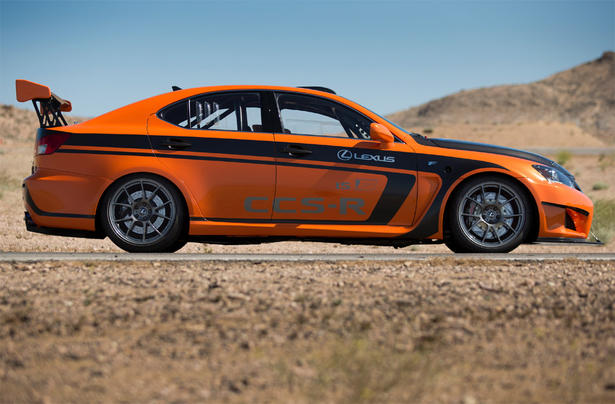

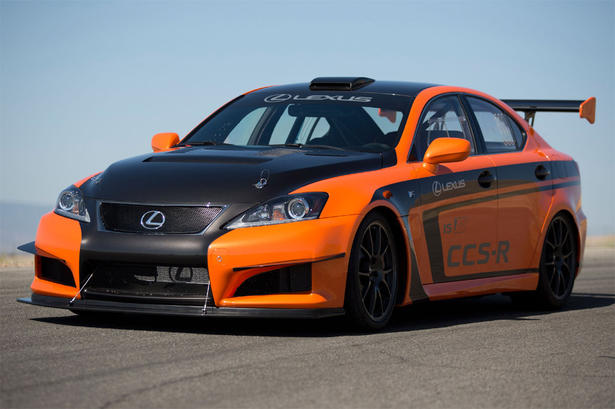

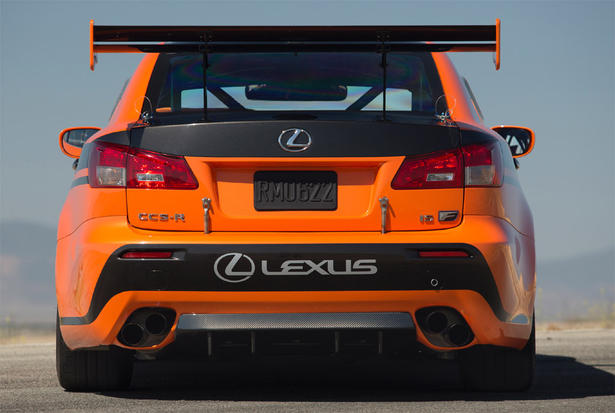

Lexus revealed today the IS-F CCS-R - a racecar that is going to be used for this year's Pikes Peak International Hill Climb race. The Lexus IS F CCS-R features countless modifications, meant to make it faster in this unforgiving competition. It comes with a carbon fiber body and polycarbonate windows, which reduce the weight of the vehicle by 314kg. The power of the IS F CCS-R comes from a 2UR-GSE 5.0-litre V8 engine that puts out 311kW (416 hp) at 6,600rpm and 371 lb.-ft. (505Nm) of torque at 5,200 rpm. The performance figures have not been disclosed. Apart from the light body and the powerful engine, the Pikes Peak IS F also comes with a reinforced monocoque chassis and roll cage, and racing brakes, suspension and exhaust system. To send the power to the rear wheels, the IS-F CCS-R uses an 8-speed Sport Direct Shift automatic gearbox, with paddle shifters.
At the interior, everything is made from carbon fiber, but there's not much going on here. They stripped the IS F of everything, except the dashboard and center console. They gave it in return a HANS compatible full bucket seat, a 6-point seat belt, and a small steering wheel.
Full Lexus IS-F CCS-R Pikes Peak Specifications:
EXTERIOR DIMENSIONS
Wheelbase 2730mm
Overall length 4759mm
Overall width 1815mm
Overall height 1384mm
WEIGHT
Curb weight 1400kg (314kg less than standard road car)
ENGINE
Designation 2UR-GSE
Displacement 5.0-litre
Power 311kW @ 6,600rpm
Torque 505Nm @ 5,200rpm
Fuel system SFI D-4 direct-to-cylinder injection with secondary port injectors
DRIVETRAIN
Layout Front engine, rear-wheel drive system
Transmission 8-speed Sport Direct Shift automatic with paddle shift and manual mode
EXTERIOR
- Orange mica exterior paint
- Reinforced monocoque (with roll cage)
- Carbon fiber hood, door handles, front fender, front spoiler, front canard, rear spoiler, ventilator
- Polycarbonate windows
- Lightweight door
WHEELS/TYRES
- SSR
18x8.5J, off-set 30 front
18x9.5J, off-set 40 rear
- Yokohama /ADVAN NEOVA A050 tires
245/40 R18 front
255/40 R18 rear
BRAKES
- Brake cooling system
- Racing brake kit
- Stainless steel mesh brake hose
SUSPENSION
- Adjustable camber front upper arm
- Modified race suspension
- Reinforced bushings and mounts
EXHAUST
- Racing exhaust system
OTHER MECHANICAL
- Engine oil cooler
- Transmission oil cooler
- Differential oil cooler
- Mechanical LSD
RACING EQUIPMENT
- 120-litre fuel cell
- Air jack system
- Fire extinguishing system
- Data logger
- Kill switch
- Tow strap
INTERIOR
- Carbon fiber dashboard, center console, door and interior trim
- HANS compatible full bucket driver's seat
- Lightened interior (removed power windows, door locks, rear seats, roof lining, etc)
- Six-point seat belt
- Small-diameter steering wheel with paddle shifters
