SEAT Ibiza Ecomotive

The engine control unit continuously checks the state of the filter, activating regeneration in order to burn the accumulated soot particles. Thanks to this system, the particle filter does not require any sort of maintenance during the car’s service life.

As for gear ratios, the reduction of the overall unit has extended the range of all the gears, especially third, fourth and fifth. Indeed, fifth is not just a “cruise” gear, but is instead completely useable, thanks to the maximum torque of 195 Nm, with the Ibiza ECOMOTIVE reaching its maximum speed of 177 km/h when in fifth. The objective is to optimize the working revs area to make the engine work around the lowest consumption revs and thus to reduce consumption, while enabling the vehicle to respond well when accelerating thanks to the performance of the 1.4 TDI 80 hp engine.

Improved aerodynamics

Vehicle aerodynamics are another of the areas that have been developed to reduce both consumption and emissions figures. Resistance to movement is reduced, thus lessening the effort made by the mechanics of the vehicle and consequently cutting fuel consumption and emissions.

Starting off from the excellent basis of the standard Ibiza, the engineers at the SEAT Technical Center have managed to optimise the ECOMOTIVE’s aerodynamic drag coefficient to 0.3, compared with the figure of 0.315 achieved by the standard version.

Particular attention has also been paid to the wheels. The Ibiza uses specific Dunlop SP10 A 165/70 R14 tires, which, thanks to the materials and production technology, provide less resistance to the road surface compared with the 195/55 R15 tires used on the standard version. Pressure in the front and rear tires of 2.9 and 2.7 bar also contributes to this. The reduced breadth of the tires also boosts the aerodynamics of the vehicle.

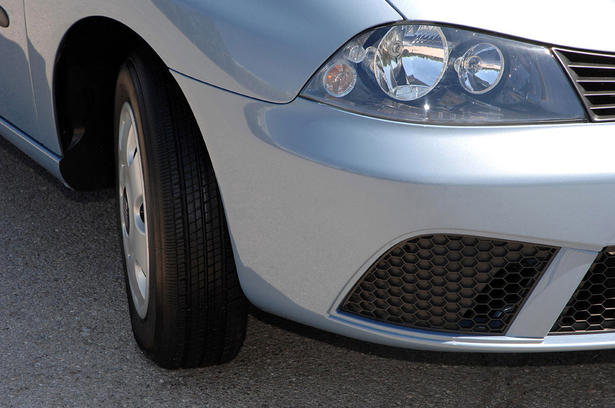

Still focusing on the wheels, the SEAT Ibiza ECOMOTIVE has steel wheels with closed-shape hubcaps. These wheels are less air-resistant than open alloy wheels. It is also worth highlighting that wheel diameter has been reduced, helping to improve the aerodynamic coefficient.

Weight reduction

With a view to achieving lower fuel consumption and emissions levels, the weight of the SEAT Ibiza ECOMOTIVE has also been reduced. At first sight this might seem to be the easiest aspect to improve, but in fact this is far from being the case.

The reason why this proved difficult was that the basis used for the Ibiza ECOMOTIVE was the Ibiza 1.4 TDI 80 hp Reference, the entry level to the range, which already had a very low weight. Central locking and the electric windows have been removed from this version, and a puncture repair kit has replaced the spare tyre.

By doing this, the Ibiza ECOMOTIVE’s minimum weight has been reduced from 1,106 kg to 1,084 kg.

Without renouncing comfort or safety

However, an environmentally friendly car like the new ECOMOTIVE should not have to lose out in terms of comfort or safety. Given that the 99 g/km figure is the average emissions value in a range of weights / car, the equipment that the Ibiza ECOMOTIVE can carry would maintain the maximum weight within the limits set by the said range.

In all the countries where the ECOMOTIVE will be marketed, its standard equipment will include features such as ABS, three rear height-adjustable headrests, side airbag, front seatbelt tensioner, front passenger seat airbag deactivation facility, central locking and electric front windows.

In addition, there are also numerous options (which in some countries will be included as standard), such as ESP, air conditioning, CD radio with up to six speakers, anti-theft alarm, curtain airbag, cruise control, headlight washer system, electric exterior mirrors, and automatic activation of lights and heated seats.

And all this without exceeding the maximum weight, so that the emissions level for this version remains at 99 g/km.

SEAT Ibiza Ecomotive Technical Specifications

Engine: 1.4 TDI 80 hp (59 kW) DPF
Type 3 cylinders - 12 v
Effective displacement (cc) 1.422
Bore / stroke (mm) 79,5 x 95,5
Compression ratio 19,5
Power output (hp/kW/rpm) 80/59/4000
Max. Torque (Nm/rpm) 195/2200
Fuel supply system Direct injection with injection pump
Ignition system Preheated spak plugs
Fuel type Diesel
Emission control system Oxidation catalytic converter + exhaust gases recirculation + Diesel Particle Filter
Alternator (A) 70/90/110/120
Battery capacity (Ah/A) 61/72

PERFORMANCE
Top speed (km/h) 177
Acceleration 0-100 km/h (s) 12.8
In-gear acceleration (V) 80-120 km/h (s) 18.5
Acceleration 1000 m (s) 34.6

CONSUMPTION *
Urban cycle (l/100 km) 4.9
Extra urban cycle (l/100 km) 3.2
Combined (l/100 km) 3.8
CO2 Emissions Combined (g/km) 99

TRANSMISSION
Gearbox Manual 5 speed
I 3.777
II 2.062
III 1.250
IV 0.843
V 0.658
R 3.600
Final drive ratio 3.157
Speed 1000 rpm in V (km/h) 51.8

CHASIS
Front suspension Independent, McPherson struts, anti-roll bar
Rear suspension Directional effect shaft, longitudinal arms
Steering system Electrohydraulic power steering
Turning circle between walls (m) 10.6
Brake system
Diagonal hydraulic, split, twin circuit, brakes servo
ABS standard. TCS and ESP optional
Front / rear brakes
Selfvent. Discs 256 x 22 /
Drum 20 x 40 (discs 232 x 9 with ESP)
Wheels 14 inch steel wheels, wheel caps
Tires 165/70 R14

DIMENSIONS
Type 5 doors (Cx = 0.300)
Length/width/heigth (mm) 3977/1698/1441
Wheelbase (mm) 2460
Track front/ rear (mm) 1419/1408
Boot capacity (l) 267
Fuel tank (l) 45

WEIGHTS
Kerb weight (kg) 1086
Gross weight (kg) 1579
Max. Towing load w. brake (kg) 800
