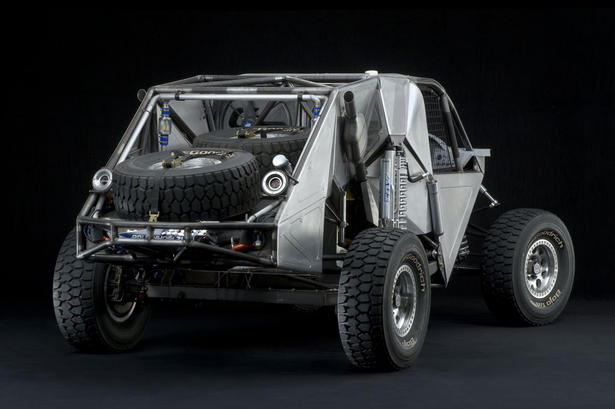

Volkswagen of America announced today the Baja Volkswagen Touareg TDI Trophy Truck that will be officially unveiled at the LA Auto Show. The Baja Volkswagen Touareg TDI Trophy Truck will compete in the 41st Annual Tecate SCORE Baja 1000 desert race in the SCORE Trophy Truck class.
The Baja Volkswagen Touareg TDI Trophy Truck is powered by a 5.5 Liter V12 TDI Twin turbo diesel engine that outputs 550 HP (405kW) and 625 ft-lb (850Nm) of torque. The Baja Volkswagen Touareg TDI has a mid-engine, rear wheel drive layout and features an Xtrac 6-speed sequential gearbox.
The extra power of the Baja Volkswagen Touareg TDI comes from dual Garrett TR 30 R with dual 43.5mm air-restrictors with 2.94 bar of absolute pressure.
The Baja Volkswagen Touareg TDI also features a 65 Gallon (240 Liter) capacity fuel cell designed by Harmon Fuel Cells.
Volkswagen Press Release:
Volkswagen of America, Inc. will unveil its purpose-built Volkswagen-Red Bull Baja Race Touareg TDI Trophy Truck, powered by a clean diesel TDI engine, during a news conference at this year’s Los Angeles Auto Show. The news conference is scheduled for 10:45 to 11:10 a.m., Wednesday, November 19, 2008, at the Volkswagen stand.
The Race Touareg TDI Trophy Truck that will run the 41st Annual Tecate SCORE Baja 1000 desert race in the SCORE Trophy Truck class is powered by a 5.5 liter V-12 clean diesel engine that produces 550 horsepower and 625 lbs.-ft. of torque.
Staying true to the off-road prowess that the Touareg is best known for, the purpose-built Race Touareg TDI Trophy Truck takes the Touareg’s off-road tenaciousness to a whole new level. With a double A-Arm front suspension that allows 25 inches of wheel travel, and a 4-link rear suspension that allows 30 inches of wheel travel,
combined with Fox Racing Shocks, Eibach Coils and BFGoodrich Baja KRT 37x13.5x17 off-road tires the Race Touareg TDI Trophy Truck should have little difficulty maneuvering the highly difficult and technical 634 mile Baja 1000 course.
Chassis design and production was handled by Arciero Miller Racing located in Foothill Ranch, California. The Race Touareg TDI Trophy Truck features a wheelbase of 125 inches, overall length of 213 inches, width of 92 inches, an overall height of 78 inches and weighs 5650 pounds.
The Race Touareg TDI Trophy Truck Body was designed by the Volkswagen Design Center located in Santa Monica, California.
The Volkswagen-Red Bull Baja Race Touareg TDI is sponsored by Volkswagen of America, Inc., Red Bull, BFGoodrich Tires, Dow Automotive, Oakley, KMC Wheels and Fox Shocks.
Volkswagen-Red Bull Baja Race Touareg TDI Specifications
Powertrain
Engine 5.5 Liter, 90 degree V-12 TDI Twin Turbo Diesel
Valve train 4 valves per cylinder, DOHC
Induction Dual Garrett TR 30 R with dual 43.5mm air-restrictors, 2.94 bar (absolute) pressure
Emissions Dow Automotive Diesel Particle Filters (2)
Horsepower 550 HP (405kW)
Torque 625 ft-lb (850Nm)
Layout Mid-engine, rear wheel drive
Transmission Xtrac 6 Speed Sequential
Rear Axle Custom Built solid 9” Rear Axle
Suspension
Front Double A-Arm Suspension – 25” wheel travel (63 cm)
Rear 4-Link Rear Suspension – 30” wheel travel (76 cm)
Front Shocks Fox Racing Shocks - 3.0 Coil-over with 3.0 Bypass/Multi-adjustable Dampener
Rear Shocks Fox Racing Shocks - 3.0 Coil-over with 3.0 Bypass/Multi-adjustable Dampener
Springs Eibach Coils
Wheels KMC 17” Custom Forged Beadlock
Tires BFGoodrich Baja KRT 37x13.5x17
General
Owner Volkswagen of America Inc.
Chassis Design Arciero Miller Racing
Body Design Volkswagen Design Center California
Dimensions
Wheelbase 125 in. (317 cm)
Overall Length 213 in. (541 cm)
Track Width 92 in. (233 cm)
Overall Height 78 in. (198 cm)
Weight 5650 lbs. (2562 kg)
Brakes Brembo 6 Piston Calipers
Steering Lee Manufacturing
Interior
GPS Lowrance 9200 system
Seats Sparco Carbon Fiber Racing seats
Fuel Cell 65 Gallon (240 Liter) Capacity, designed by Harmon Fuel Cells
Sponsors Sponsored by Red Bull, BFGoodrich Tires, Dow Automotive, Oakley, KMC Wheels, Fox Shocks.
