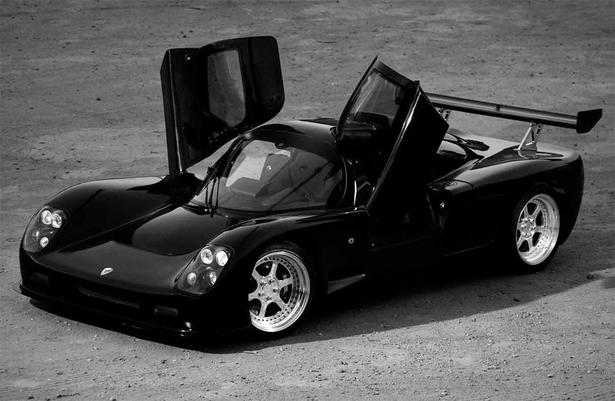

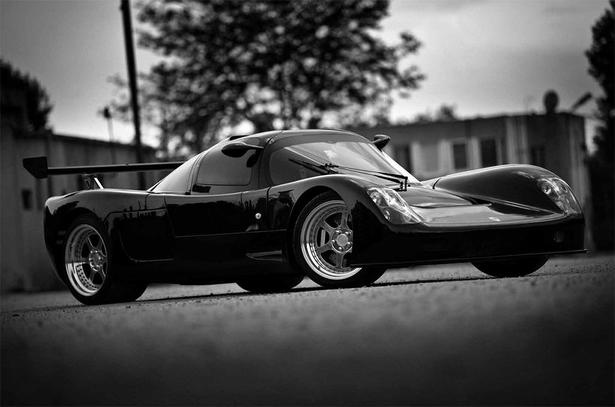

Black Falcon SBC TT1750 Supercar

 »  »  »

Black Falcon Cars revealed today the first Romanian supercar, which is called the SBC-TT1750. Supercar is a bit of an understatement. Based on the Ultima GTR, the Black Falcon SBC-TT1750 develops... wait for it... 1,215 hp on 98 octane fuel. If you'll run it on racing fuel, you'll get 1,750 horsepower out of it! Go back to school Veyron! The power of the SBC-TT1750 comes from a 7.0-liter small block Chevy V8 engine with twin 72 mm turbos that's good for 1,215 hp at 5,850 rpm and 1,400 Nm of torque at 5,000 rpm. If you put 115 octane gas in it, you'll get 1,750 hp at 5,650 rpm. Black Falcon's official performance figures say that the SBC-TT1750 is able to accelerate from zero to 62 mph (100 km/h) in 2.6 seconds and to reach a top speed of 402 km/h.

They also say that the SBC-TT1750 is able to stop from 62 mph (100 km/h) in just 3.6 seconds. The engine is mated to a transaxle 6-speed manual transmission and a rear-wheel-drive system.

The Black Falcon SBC-TT1750 measures 157.4 in. (4,000 mm) in length, 72.83 in (1,850 mm) in width, 41.33 in (1,070 mm) in height and it has a 2,560 mm wheelbase. It has a dry weight of 2300 lbs. (1,221 kg). Black Falcon builds the SBC-TT1750 on a space frame chassis, with a body made from 1.5mm NS4 aluminum alloy sheets. The SBC-TT1750's chassis comes with support struts that eliminate the engine's inertia movement and offer optimal rigidity.



The Chevrolet engine of the SBC-TT1750 is based on a Brodix SBC block built especially for this car by Nelson Racing Engines, USA. The TBFC-6M transaxle transmission was developed in-house by Black Falcon Cars based on a Porsche GT3 gearbox. The SBC-TT1750 is based on the Ultima GTR, but the Romanian carmaker had to modify the rear section of the GTR's chassis to accommodate the turbocharged intercooled engine and the gearbox. Black Falcon fits the SBC-TT1750 with two-way adjustable Ohlins TTX shock absorbers, double unequal length wishbones, pushrods, and sway bars. To make it more comfortable on the road, BFC developed a special sway bar system for both axles.

You'll probably expect the SBC-TT1750's interior to be a Spartan, cold, race car cockpit, but it's not. Black Falcon updated the Ultima GTR's dashboard with a newly developed iBFC touch-screen system, various leather and Alcantara trim parts, as well as gold plated elements. The iBFC is a new interface with an 8-inch screen that promises to offer a better connection between the driver and the car. The SBC-TT1750's electrical system uses solid state digital semiconductor boards and it doesn't require any fuses or relays. The CANbus operated multimedia system offers various telemetric data and it has two operating modes. In race mode you get RPM, pressure, temperature and g-force information, and in City mode you get the car's speed and turn signals. The iBFC system, which was developed in-house, and it can be configured to monitor all of the car's characteristics, from power output levels to whether or not a lamp is broken.

For everyday use, the SBC-TT1750 can be fitted with Michelin PS-XL tires, but if you want to get all the performance it can offer, you'll have to equip it with DOT slick tires.

The Black Falcon SBC-TT1750 is handbuilt in a factory in Romania. It comes with a 1-year warranty and 7000 km / 4375 miles service intervals. You'll have to contact Black Falcon Cars to get the SBC-TT1750's price.

Black Falcon SBC-TT1750 Equipment:

- Rear wing
- Adjustable seat length
- Intelligent battery system
- 4 point racing harnesses
- MP3 player with 8 speakers
- USB connectivity
- Climate control
- Digital warning and info system
- G sensor
- Special leather
- Rear view camera
- push Start/Stop system
- iBFC-PS system
- Car cover

Black Falcon SBC-TT1750 Specifications:

Engine

Type: Small Block Chevy - V8 - 427c.i. / 7 liter
Producer: Nelson Racing Engines, USA
Engine Block: Brodix 9.325 engine block with .391 raised, camshaft and spread pan rail splayed block, main caps ductile iron cylinder sleeves
Bore: 4.125 in / 104.7 mm
Stroke: 4.00 in / 101.6 mm
Compression: 8.8:1
Crank Shaft: Callies 4.0 magnum 4340 Forged Steel
Connecting Rods: Oliver billet 4340 connecting rods
Balanced: SFI Internal Balancing dynamic within 1 gram
Pistons: JE 8.8 Forged Pistons Ceramic Coating
Camshaft: Custom NRE Solid Roller Cam
Timing Chain: Dyna Gear Billet Roller Timing Chain w / Torrington Bearing
Cylinder Heads: Air Flow Research 235cc flowing 340 CFM, Ported Heads
Valves: Stainless Steel Valves 2.100 / Intake, Inconel, 1.6 / One Piece
Oil System: Titan Gerotor High Volume Oil Pump
Intake Manifold: Nelson Billet Alien intake with dual injectors per cylinder. Billet aluminum fuel system built-in with dual 62 mm throttle body
Ignition System: Standalone ECU - laptop programmable
Turbochargers: Twin 72 mm Turbo Superchargers
Exhaust System: 321 stainless headers fully TIG welded, Ceramic coated
Intercooling: Twin Air to Air Intercooler system

Transmission

TBFC-6M - 6 speed manual transaxle (special steel CNC case / custom gear ratios and shafts from nickel chrome steel / high flow oil pump / double clutch system / Torsen differential).

Performance

Power output - 98 octane: 1215 hp at 5850 rpm - redline at 6000 rpm
Torque - 98 octane: over 1000 Nm from 3900 to 6500 rpm
Max torque - 98 octane: 1400 Nm at 5000 rpm
Power output - 115 octane: 1750 hp at 5650 rpm - redline at 6000 rpm
* Power levels are digitally adjustable by iBFC System - 3 levels

Acceleration: 0-100 km/h (0-62 mph) in 2.6 seconds
Braking time: 3.6 sec (100-0 km/h)
Top speed: 402 km/h

Dimensions

Total length: 4000 mm (157”)
Total width: 1850 mm (72.8”)
Total height: 1070 mm (42.1”)
Ground clearance: Rear: 85 mm (3.35”) / Front: 110 mm (4.33”)
Wheelbase: 2560 mm
Fuel capacity: 88 liters on 2 tanks
Luggage compartment: not present

Weight

Dry weight: 1221 kg
Curb weight: 1340 kg (all fluids + 50% fuel)
Weight distribution: 38% front, 62% rear
Weight-to-power ratio: 1.0 kg/hp (dry weight), 98 octane power level
Weight-to-power ratio: 0.7 kg/hp (dry weight), 115 octane power level

Steering

Left-hand drive special alloy sports rack and pinion 2.4 turns lock to lock.

Brakes

Front brakes: Curved vane vented discs Ø 362 mm, 32 mm wide, 6-Piston Calipers
Rear brakes: Curved vane vented discs Ø 362 mm, 32 mm wide, 6-Piston Calipers
Hand Brade: Electrical - 2 Rear Second Calipers

Wheels

Front: 18” x 9” - three piece alloy wheels with 5 stud centers machined from alloy billets
Rear: 18” x 13.5” - three piece alloy wheels with 6 stud centers machined from alloy billets

Tires / street version

Michelin Pilot Sport XL
Front: 245/35 - 18” (Y)
Rear: 335/30 - 18” (Y)

Color

Custom options available


Black Falcon SBC-TT1750 presentation video:
