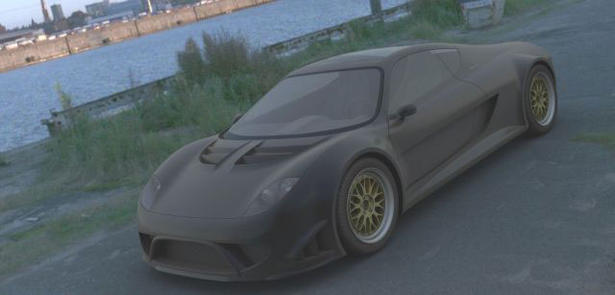

The Hansen GT-R will be launched in 2007. Until then, the Dutch car manufacturer Hansen has released the details of its new Hansen GT-R track car.
FRAME
The mid section is a semi-monocoque with integrated roll cage. Aluminium, steel, honeycomb and composite materials are combined to provide low weight, high torsional stiffness and maximum safety. Front and rear sections are space frame constructions for easy access to driveline and suspension components.
BODY
Body panels made from carbon- and glass fibre
reinforced epoxy. Bonded laminated windshield. Front and back open completely for excellent accessibility. Front splitter, rear diffuser and flat bottom.
DIMENSIONS & WEIGHTS
- WHEELBASE 2700 mm
- OVERALL LENGHT 4240 mm
- OVERALL WIDTH 1980 mm
- OVERALL HEIGHT 1171 mm
- WEIGHT ("dry" - no fuel) 1100 kg
- FUEL TANK 100 litres
SUSPENSION
Independent front and rear double wishbones, anti-roll springs & dampers
BRAKE SYSTEM
- Non-assisted aluminium alloy calipers:
- 6 pistons front and 4 pistons rear
- Ventilated discs: Ø 380 x 34 mm - Ø 355 x 32 mm
STEERING
Power-assisted rack and pinion, quick rack
TYRES&WHEELS
265/45 18" front, 305 /30 18" rear
ENGINE
- TYPE: V10
- DISPLACEMENT: 5000 cc
- MAXIMUM POWER More than 500 BHP
- MAXIMUM TORQUE: More than 500 Nm
COOLING SYSTEM
Water radiator in front, oil coolers for engine and transmission in engine compartment.
GEARBOX
6 speed + reverse
