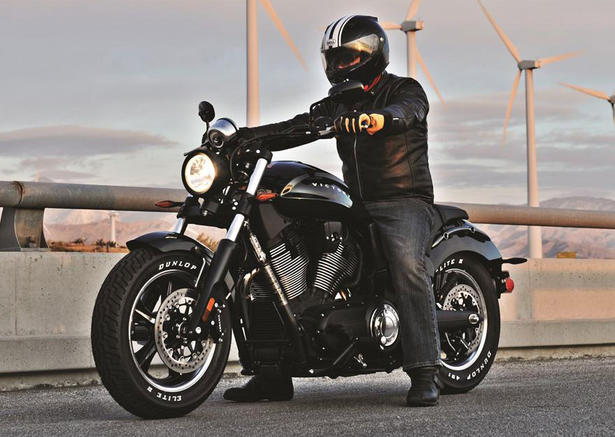

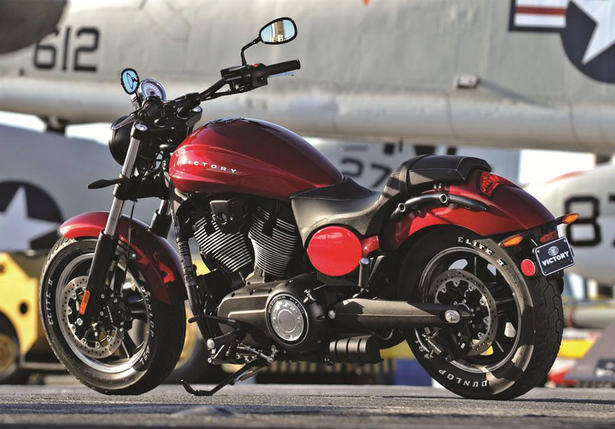

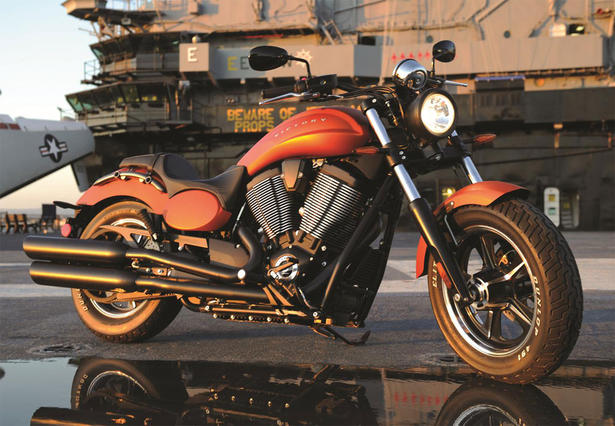

Victory Judge is a newly unveiled motorcycle, which comes with muscle car inspired styling, and a powerful V-Twin engine. With clean lines, deeply sculpted bodywork and blacked-out components, the new Judge from Victory is one of the meanest looking bikes we have seen lately. Even it's color scheme has a menacing name - Suede Nuclear Sunset. The Victory Judge features mid-mounted lower controls and offers an "engaged" riding position with a 25.9" (658 mm) seat height. With a low center of gravity and a good balance, Victory's Judge promises easy handling for riders of any height.
The power of the Victory Judge comes from a Freedom 106/6 V-Twin engine, which is good for 113 ft-lbs of torque.
The bike is equipped with a 6-speed transmission with Helical-cut gears, and a 4.5-gallon (17.0 liter) fuel tank.
The performance figures and pricing information of the Victory Judge will be announced closer to the bikes launch date, in May this year.
Victory Judge Specifications:
ENGINE TYPE 4-Stroke 50˚ V-Twin
COOLING SYSTEM Air / Oil
DISPLACEMENT 106 ci / 1731 cc
BORE X STROKE 101 x 108 mm
COMPRESSION RATIO 9.4 : 1
VALVE TRAIN Single Overhead Camshafts with 4 Valves per Cylinder,
Self-adjusting Cam Chains, Hydraulic Lifters
FUEL SYSTEM Electronic Fuel Injection with Dual 45 mm Throttle Body
FUEL CAPACITY 4.5 gal / 17.0 ltr
EXHAUST Staggered Slash-cut Dual Exhaust with Crossover
OIL CAPACITY 5.0 qts / 4.75 ltr
CHARGING SYSTEM 38 Amps Max Output
BATTERY 12 Volts / 18 Amp Hours
PRIMARY DRIVE Gear Drive with Torque Compensator
CLUTCH Wet, Multi-plate
TRANSMISSION 6-speed Overdrive Constant Mesh
FINAL DRIVE Carbon Fiber Reinforced Belt
CHASSIS DIMENSIONS
Length 92.0 in / 2337 mm
Wheelbase 64.8 in / 1647 mm
Seat Height 25.9 in / 658 mm
Ground Clearance 4.7 in / 120 mm
Rake/ Trail 31.7˚ / 6.7 in / 170 mm
Dry Weight 660 lbs / 300 kg
GVWR 1151 lbs / 522 kg
FRONT SUSPENSION
Type Conventional Telescopic Fork
Travel 5.1 in / 130 mm
REAR SUSPENSION
Shock Absorber Single, Mono-tube Gas
Swingarm Cast Aluminum with Rising Rate Linkage
Travel 3.0 in / 75 mm
Adjustments Preload Adjustable Spring
BRAKES
Brake System Type Conventional
Front System Type 300mm Floating Rotor with 4-piston Caliper
Rear System Type 300mm Floating Rotor with 2-piston Caliper
WHEELS
Front 16 x 3.5 in
Rear 16 x 3.5 in
TIRES
Front 130/90 B16 67H Dunlop 491 Elite II-RWL
Rear 140/90 B16 77H Dunlop 491 Elite II-RWL
COLOR OPTIONS Gloss Black, Suede Nuclear Sunset, Sunset Red
