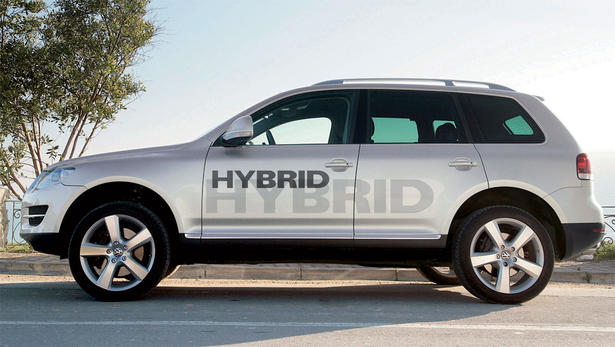

VW has released today the first details and images of the Volkswagen Touareg Hybrid powered by a V6 TSI engine. The Volkswagen Touareg Hybrid is still in a prototype phase and features a V6 TSI Hybrid powertrain that's good for 333 PS and offers a fuel economy of under 9.0 l/100 km. It's supercharged V6 TSI engine outputs 245 kW and the electric motor generates 38 kW. The Volkswagen Touareg Hybrid is able to tun up to a top speed of 50 km/h with just its electric motor.
The Volkswagen Touareg Hybrid features a newly developed 8-speed automatic transmission and is able to tow up to 3.5 metric tons.
Volkswagen Press Release:
Touareg V6 TSI Hybrid. Because the future of the automobile – and BlueMotionTechnologies as well – offers more than just one answer, in parallel Volkswagen is presenting a prototype of the future Touareg V6 TSI Hybrid (333 PS / under 9.0 l/100 km). This car will enter production in 2010 as the world’s first hybrid SUV to have 3.5 metric ton towing capacity. Volkswagen is introducing one of the highest performance parallel hybrid systems in the world in this SUV. The German carmaker is
utilizing a high-tech alliance of a V6 TSI (245 kW) boosted by supercharger and an electric motor (38 kW). Up to a speed of 50 km/h, the Touareg V6 TSI Hybrid can be driven by just the electric motor. In this case, no emissions are generated.
The Touareg Hybrid prototype being demonstrated incorporates many features of the production vehicle of tomorrow. The car is powered by a new V6 TSI – a highly advanced configuration of a direct injection gasoline engine boosted by a mechanically-driven supercharger – in tandem with an electric motor. It features a newly developed 8-speed automatic transmission.
Volkswagen is implementing a parallel hybrid drive on the future Touareg V6 TSI Hybrid. The SUV is able to offer a state-of-the-art all-wheel drive system and up to 3.5 metric tons towing capacity in this version too.
The V6 TSI on the Touareg is clearly happy at high revs and exhibits agile response. It delivers 245 kW / 333 PS. This places the TSI at the same power level as an eight cylinder engine, yet it is considerably more fuel efficient. When used in the hybrid drive, fuel consumption of less than

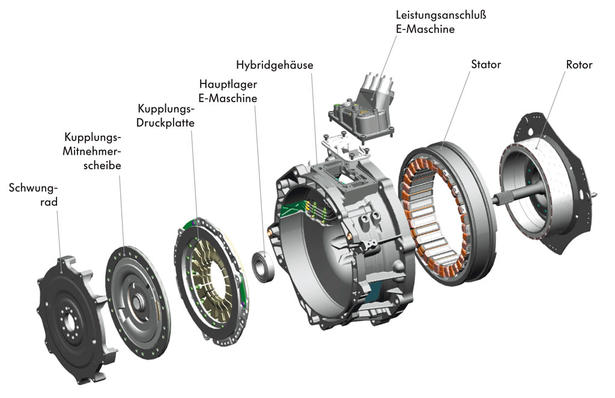

9.0 liters of fuel per 100 kilometers is attained. The electric motor installed between the V6 TSI and the 8-speed automatic transmission delivers a maximum power of 38 kW / 52 PS. In boosting mode – where maximum torque and power are required, the V6 TSI engine and the electric motor operate together (by kickdown or gearshift selector in "S" position). Under these conditions, a temporary maximum power of 275 kW / 374 PS is available with a maximum torque of 550 Newton-meter. However, it should be stated that the system is primarily designed for excellent fuel consumptions and emissions and that the availability of temporary high performance is just a welcome side benefit.
