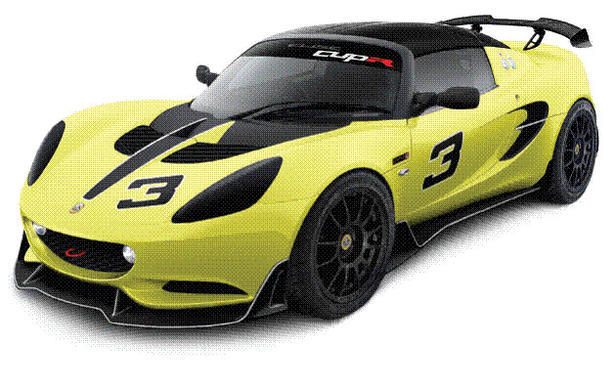

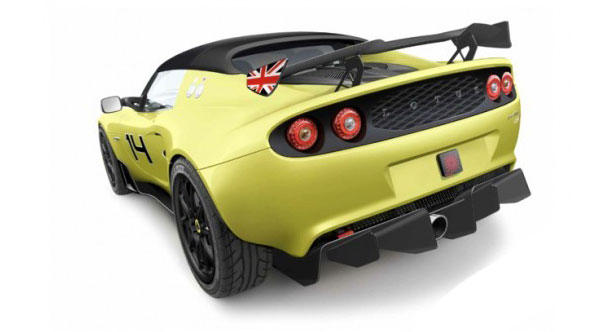

Lotus revealed today the new track-only Elise S Cup R race car. The Lotus Elise S Cup R is powered by the 1.8 liter 2ZR-FE supercharged engine that features dual VVT-i, 16 valves, Magnuson R900 supercharger and Eaton TVS technology. The engine of the Cup R Elise S is mated to a 6-speed manual transmission as standard. Lotus says that the Cup R version of the Elise S has a higher horsepower output in comparison to the road-going model thanks to a motorsport engine control module (ECM). However, Lotus does not disclose the actual power and torque output of the Elise S Cup R. The new race comes with a bespoke aerodynamic package, called CFD that includes a front splitter, barge boards, winglets, a rear diffuser, floor extensions and a rear wing.
The Elise S Cup R weighs 924 kg, which is the same as the road legal version. Thanks to the extra downforce created by the body kit, and the new adjustable damper and springs settings, the Elise S Cup R is 4 seconds faster than the Elise S on a 5 km lap.
Lotus Elise S Cup R equipment list:
Enhancements:
- FIA Compliant Rollcage (As previous Cup Versions)
- FIA Compliant Fire Extinguisher
- Motorsport Mapped ECU
- Electronic Battery Isolator
- 6-Point Race Harness (Driver Seat)
- Hans Compliant Race Driver's Seat
- Track Specification Front Tow Eyes
- Quick Release Steering Wheel
- Body Kit
- Brake Pad Upgrade
- Single way adjustable Dampers
- Hardtop
- Motorsport specification triple-pass radiator
- Polycarbonate Rear Screen
- Forged Alloy Wheels
Options:
- FIA Fuel Cell
- Air Conditioning
- Race Passenger Seat (with 4-point race harness fitted)
- Ultra-lightweight Motorsport Wheels
Powertrain:
All alloy, 1.8 liter DOHC 4 cylinder, dual VVT-i, 16 valve with Magnuson R900 supercharger utilizing Eaton TVS™ technology
Transmission:
6-speed manual gear box as standard
Suspension:
Up Rated TCA Kit
Brakes:
Twin-piston fixed aluminum alloy front brake calipers. Single-piston sliding rear brake calipers. 288 mm diameter, 26 mm thick front and rear cast-iron cross-drilled & ventilated brake discs
Wheels:
Forged Alloy
Tires:
Yokohama Advan Neova AD07 LTS tires F: 175/ 55 R16 & R: 225/ 45 R17
Safety systems:
Lotus ABS/ EDL
