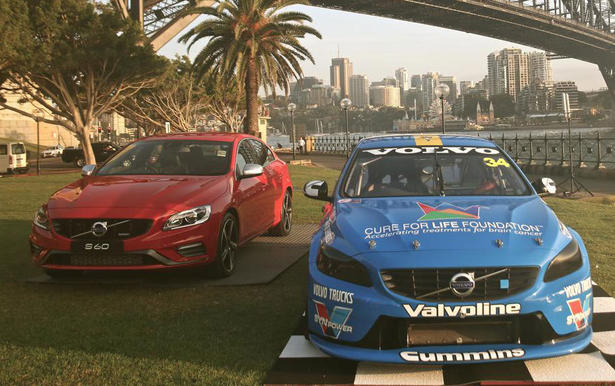

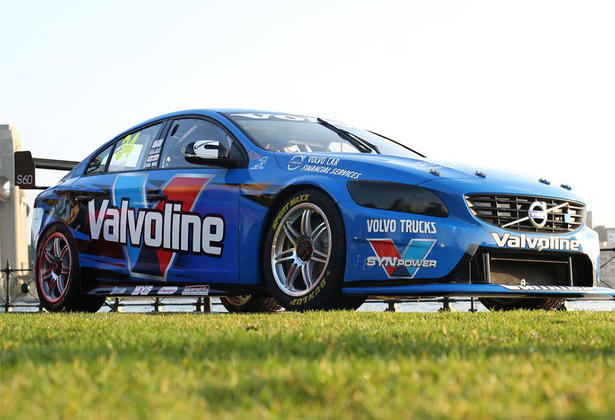

Volvo and Polestar revealed today the new S60 V8 Supercar, which is going to compete in the 2014 V8 Supercars Championship with drivers Scott McLaughlin and Robert Dahlgren. The Volvo S60 V8 Supercar is powered by a 5.0-liter naturally aspirated V8 engine that develops around 650 bhp at 7,500 rpm on E85 fuel. The engine is mated to a 6-speed sequential Transaxle transmission with an integrated spool differential. According to Volvo, their new S60 V8 Supercar is able to accelerate from nought to 62 mph (100 km/h) in 3.2 seconds and to reach a top speed of more than 298 km/h. Volvo's S60 V8 Supercar sits on 18-innch racing wheels, a double wishbone front suspension and a control independent rear suspension (both of them fully adjustable, with the anti-roll bar controlled from the cockpit).
The Volvo S60 V8 Supercar is fitted with AP Racing brakes with 6-piston calipers and 395mm ventilated discs at the front and 4-piston calipers and 355mm ventilated discs at the rear. The car, including the driver, weighs 1,410 kg.
Volvo S60 V8 Supercar Full Specifications:
Engine Modified Volvo B8444S (see below)
Transmission Control Albins ST6 6 speed sequential Transaxle with integrated spool differential
Front suspension Double wishbone suspension, adjustable damper and cockpit adjustable front anti-roll bar
Rear suspension Control independent rear suspension, adjustable damper; cockpit adjustable anti-roll bar
Front brakes AP Racing 6 piston caliper, 395mm ventilated discs
Rear brakes AP Racing 4 piston caliper, 355mm ventilated discs
Wheels Control Rimstock 18" x 11" forged aluminum
Tires Dunlop control tire
Weight 1410KG (includes driver)
Top speed 298+ km/h
0-100km/h 3.2 seconds
Steering Custom rack and pinion power assisted steering
Shocks Ohlins TTX Dampers
Electronics MoTec ECU and Data Logging System
Engine technical information
Block Modified Volvo B8444S, 60 degree aluminum cylinder block
Heads Modified Volvo B8444S, aluminum
Bore x Stroke 95.5 x 87.1
Capacity 4989cc
Compression 10:01
Power 650bhp (estimated)
Max revs 7500rpm
Induction Naturally aspirated, eight throttle bodies
Fuel E85
Liners Cast in steel liners
Valve train Double overhead camshafts, direct acting tappets, chain drive
Ignition Volvo B8444S coil on plug
Injection Port injection, one injector per cylinder, injection pressure: 5.5 bar
