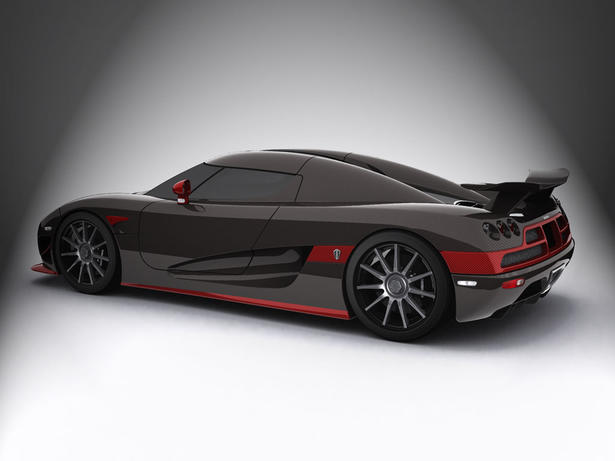

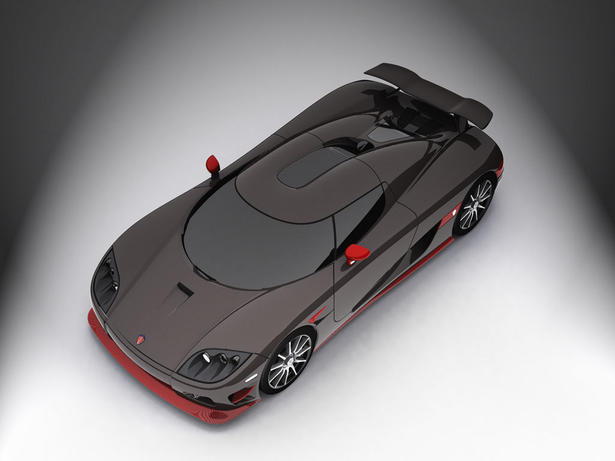

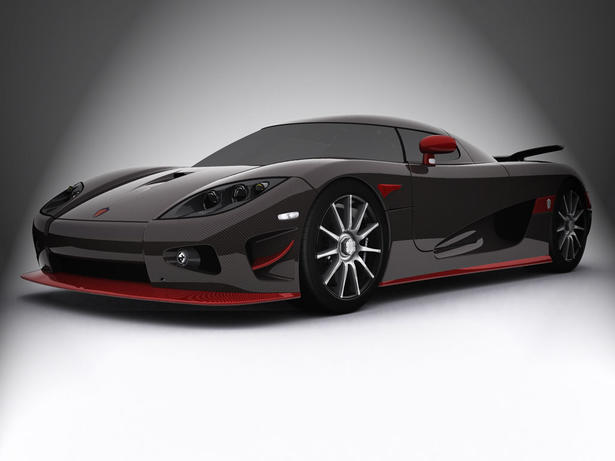

We finally received all the technical details of the Koenigsegg Edition CCXR and Koenigsegg Edition CCX special editions that have taken the net by storm a few days ago. The Koenigsegg Edition CCXR and CCX are built due to requests made by some (we think very important) Koenigsegg clients.
The Koenigsegg Edition comes in two limited version models, the Koenigsegg CCXR and Koenigsegg CCX.
Both Koenigsegg CCXR and Koenigsegg CCX are powered by a 5.0 liter twin supercharged Koenigsegg engine. The Koenigsegg Edition CCXR and CCX are more track oriented compared to the standard models,
being equipped with stiffer springs and anti-roll bars, reset dampers and a lowered chassis. The Koenigsegg Edition CCXR and the CCX also feature a fully visible carbon body, a large adjustable rear wing, larger front splitter and side strakes and a unique forged wheel design.
The interior is also reworked and features; color matched leather carpets, Koenigsegg Edition side step plates, Edition chronograph instrument cluster, a new Edition only layout for the center console control panels.
All other extra equipment for the Koenigsegg Edition CCXR and CCX comes as standard: Carbon Wheels, Special interior trim and color, Rearview camera, Satnav or Bluetooth, Amplifiers, complete Inconell exhaust system.
The Koenigsegg Edition CCX will be built, sadly, in only 14 units with a power output of 888 hp and at a price of 1,330,000 Euro per unit.
The Koenigsegg Edition CCXR is going to be an E85/petrol flex fuel version and it is going to be built, even more sadly, in just 6 units. The Koenigsegg Edition CCXR has a 1018 bhp
power output and a 1,500,000 Euro price tag.
The Koenigsegg Edition supercars are some of the most exclusive on the planet, with just a total of 20 being built. No, their are not already sold. Just the first from each version is 'already spoken for'. Big thumbs up! to Koenigsegg for announcing them before they got sold.
Each Koenigsegg Edition car comes with 5 years free Service and Warranty.
The Koenigsegg Edition CCXR and CCX will be unveiled at the Geneva Motor show in March 2008, where the first delivery will take place.
CCX Edition Technical Specification
Performance
Acceleration: 0-100 km/h (0-62 mph) 2.9 seconds.
0-200 km/h 9.2 sec, 0-200-0 km/h 14 sec
Top speed: 400+ km/h (245+ mph).
Braking distance: 32m (100–0 km/h)
Lateral G-force: 1.4 G
Weight to Power ratio: 1.44 kg/hp
Weight distribution %: 45% front, 55% rear
Fuel consumption: Highway travel: 13 l/100 km
Combined: 17 l/100 km
Body
Two-door, two-seater with removable hardtop storable under the front hood lid.
Composite Group System. Total Body weight 56 kg
Dimensions
Total length: 4293 mm (169”)
Total width: 1996 mm (78.6”)
Total height: 1120 mm (44,1”)
Ground clearance: 100 mm (3.9”)
Fuel capacity: 70 liters (18,5 gallons US)
Luggage compartment: 120 liters (31,7 gallons US)
Dry weight: 1280 kg (2821LBS) (Fully equipped with: Airbag, Glass roof and rear window, power windows, ABS, sound insulation, lifting system, Power steering and power brakes)
Aerodynamics
Cd. 0,33 Frontal area 1.867 m2
Flat underside of chassis. Venturi tunnels at rear of chassis/body.
Steering
Rack and pinion power assisted steering. 2.7 turns lock to lock.
Turning circle: 11 meters.
TRW electrohydraulic power assisted.
Chassis
Front and rear suspension: Double wishbones, chnical adjustable ups Racing gas-hydraulic two way adjustable shock absorbers, pushrod operated. Anti-roll bar.
Electronically adjustable ride height.
with aluminum honeycomb and integrated fuel tanks for optimal weight distribution and safety. monocoque torsional rigidity: 58.000 Nm/degree. Weight including tanks: 72 kg
Front: Cr Mo subframe, with integrated crashmembers.
Rear: semi-stressed engine and gearbox with support struts, for optimal rigidity and no engine inertia movements.
Fully machined aircraft aluminum uprights, with SKF LeMans specification 150mm anglecontact ball bearings.
GKN hollow/gundrilled driveshafts.
Integrated pushrod operated VPS dual adjustable gas shockabsorbers.
Koenigsegg Z-style progressive and lightweight anti-roll bars front and rear.
Brakes
Front brakes: Ceramic discs Ø 380 mm, 34 mm wide. 8 piston light alloy Brembo monoblock calipers.
Power assisted.
Koenigsegg Advanced Control system.
Rear brakes: Ceramic discs Ø 362 mm, 32 mm wide. 6 piston light alloy AP Racing callipers. Power assisted.
Koenigsegg Advanced Control system.
Traction Control: F1 style for optimal performance with 5 different handling modes.
Wheels
Koenigsegg Carbon / alloy wheels with center locking.
Front:19” x 9.5”
Rear: 20” x 12.5”
Tires
Michelin Pilot Sport 2.
Unidirectional with asymmetric tread pattern.
Front: 255/35–19” (Y)
Rear: 335/30–20” (Y)
Transmission
Specially developed 6-speed gearbox.
Torque sensitive, limited slip differential.
Clutch: Dual Plate, Ø 240 mm.
Transversally mounted race style gearbox with limited slip differential. 6 gears plus reverse.
Final ratio: 3,364
1st gear: 2,875
2nd gear: 1,773
3rd gear: 1,267
4th gear: 1,000
5th gear: 0,833
6th gear: 0,711
Reverse gear: 3,000
Engine
Type: Koenigsegg V8 cast aluminum, 4 valves per cylinder, double overhead camshafts.
Displacement: 5.0 liter
Compression: 8.6.1
Lubrication system: Dry sump with oil spray piston cooling.
Oil cooler.
Weight 178 kg including supercharger and drysumpsystem.
Intake Manifold: Koenigsegg milled aircraft aluminum manifold.
Patented response charge system for optimal engine respons.
Manifold ceramic coated.
Emission levels: Euro IV. CARB/EPA Bin 5, with OBDII.
Sequential, multipoint fuel injection.Twin Rotrex centrifugal superchargers with response system 1.5 bar boost pressure.
Hydraulic lifting system: Lifts the front of the car 50mm in 3 seconds, from the press of the button. Automatic drop down safety feature at 50 km/h.
Central electrical system: Digital semiconductors instead of fuses or relays. Can bus operated and fully programmable functionality.
Power output: 888 Bhp at 7.000 rpm.
Maximum torque: 920 Nm (678ftlb) at 5.800 rpm.
CCXR Edition Technical Specification
Performance
Acceleration: 0-100 km/h (0-62 mph) 2.9 seconds.
0-200 km/h 8.9 sec, 0-200-0 km/h 13.7 sec
Top speed: 417+ km/h (250+ mph).
Braking distance: 32m (100–0 km/h)
Lateral G-force: 1.4 G
Weight to Power ratio: CCXR: 1.26 kg/hp
Weight distribution %: 45% front, 55% rear
Fuel consumption: Highway travel: 18 l/100 km (E85)
Combined: 22 l/100 km (E85)
Body
Two-door, two-seater with removable hardtop storable under the front hood lid.
Composite Group System. Total Body weight 56 kg
Dimensions
Total length: 4293 mm (169”)
Total width: 1996 mm (78.6”)
Total height: 1120 mm (44,1”)
Ground clearance: 100 mm (3.9”)
Fuel capacity: 70 liters (18,5 gallons US)
Luggage compartment: 120 liters (31,7 gallons US)
Dry weight: 1280 kg (2821LBS) (Fully equipped with: Airbag, Glass roof and rear window, power windows, ABS, sound insulation, lifting system, Power steering and power brakes)
Aerodynamics
Cd. 0,33 Frontal area 1.867 m2
Flat underside of chassis. Venturi tunnels at rear of chassis/body.
Steering
Rack and pinion power assisted steering. 2.7 turns lock to lock.
Turning circle: 11 meters.
TRW electrohydraulic power assisted.
Chassis
Front and rear suspension: Double wishbones, adjustable ups Racing gas-hydraulic two way adjustable shock absorbers, pushrod operated. Anti-roll bar. Electronically adjustable ride height.
with aluminum honeycomb and integrated fuel tanks for optimal weight distribution and safety. monocoque torsional rigidity: 58.000 Nm/degree. Weight including tanks: 72 kg
Front: Cr Mo subframe, with integrated crashmembers.
Rear: semi-stressed engine and gearbox with support struts, for optimal rigidity and no engine inertia movements.
Fully machined aircraft aluminum uprights, with SKF LeMans specification 150mm anglecontact ball bearings.
GKN hollow/gundrilled driveshafts.
Koenigsegg Z-style progressive and lightweight antiroll- bars front and rear.
Brakes
Front brakes: Ceramic discs Ø 380 mm, 34 mm wide. 8 piston light alloy Brembo monoblock calipers. Power assisted.
Koenigsegg Advanced Control system.
Rear brakes: Ceramic discs Ø 362 mm, 32 mm wide. 6 piston light alloy AP Racing callipers. Power assisted.
Koenigsegg Advanced Control system.
Traction Control: F1 style for optimal performance with 5 different handling modes.
Wheels
Koenigsegg Carbon / alloy wheels with center locking.
Front:19” x 9.5”
Rear: 20” x 12.5”
Tires
Michelin Pilot Sport 2.
Unidirectional with asymmetric tread pattern.
Front: 255/35–19” (Y)
Rear: 335/30–20” (Y)
Transmission
Specially developed 6-speed gearbox.
Torque sensitive, limited slip differential.
Clutch: Dual Plate, Ø 240 mm.
Transversally mounted race style gearbox with limited slip differential. 6 gears plus reverse.
Final ratio: 3,364
1st gear: 2,875
2nd gear: 1,773
3rd gear: 1,267
4th gear: 1,000
5th gear: 0,833
6th gear: 0,711
Reverse gear: 3,000
Engine
Type: Koenigsegg V8 cast aluminum, 4 valves per cylinder, double overhead camshafts.
Displacement: 5.000 cm3.
Compression: 9.2:1
Lubrication system: Dry sump with oil spray piston cooling.
Oil cooler.
Weight 178 kg including supercharger and drysumpsystem.
Intake Manifold: Koenigsegg milled aircraft aluminum manifold.
Patented response charge system for optimal engine respons.
Manifold ceramic coated.
Emission levels: Euro IV.
Sequential, multipoint fuel injection. Twin Rotrex centrifugal superchargers with response system 1.6 bar boost pressure.
Hydraulic lifting system: Lifts the front of the car 50mm in 3 seconds, from the press of the button. Automatic drop down safety feature at 50 km/h.
Central electrical system: Digital semiconductors instead of fuses or relays. Can bus operated and fully programmable functionality.
Power output: 1018 Bhp at 7.000 rpm.
Maximum torque: 1060 Nm (740ftlb) at 5.600 rpm.
Standard Equipment for both CCX and CCXR versions
• Large adjustable carbon rear wing
• Larger front splitter and side strakes for increased down force
• Unique forged wheel design
• Stiffer springs and anti-roll bars
• Reset dampers and lowered chassis
• Bodywork in clear coated Carbon
• Carbon Fiber Rims
• Custom Color Leather Interior
• Sound System, Rear Camera and GPS Navigation
• Chronograph Instrument Cluster
• Car Cover
• Detachable & in-car storable roof
• Climate Control
• Electric rear view mirrors
• Leather upholstery
• Central locking
• Electrical windows
• Alarm with immobilizer
• Airbags
• Power steering
• Hydraulic ride height system
• Power brakes
• ABS
• Traction Control
• Driving education
• Clear coated Carbon Splitters, Side Skirts and Lamps
• 5 years free service & warranty
