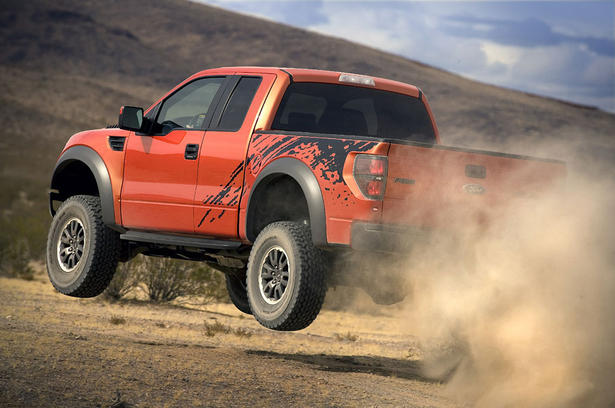

Ford released today the details and photos of the new 2010 Ford F150 SVT Raptor. The 2010 Ford F150 SVT Raptor is powered by a 5.4-liter Triton V8 engine developing 310 hp and 365 lb.-ft of torque. The company also announced that after launch, the 2010 Ford F150 SVT Raptor will also be available with a 6.2-liter V8 powerplant.
The 2010 Ford F150 SVT Raptor is built for going fast over rough terrain, so the suspension is equally, if not more, important than the power. The 2010 Ford F150 SVT Raptor is equipped with a specialized suspension that offers 13.4 inches of usable travel in the rear and 11.2 in the front.
Ford also announced today that the new 2010 Ford F150 SVT Raptor will compete in the Tecate SCORE Baja 1000 – one of the most grueling off-road races on the circuit.
Ford Press Release:
Ford, the definitive leader in tough trucks, is further building on its solid foundation of the new F150 to deliver the all-new 2010 F150 SVT Raptor, a purpose-built, high-performance off-road truck versatile enough to take on the most challenging desert adventures as well as the everyday commute.
“Ford trucks have been a mainstay on the off-road racing scene for more that 20 years because of
our long history of capability and durability,” said Derrick Kuzak, Ford’s group vice president for Global Product Development. “With the F150 SVT Raptor, we are delivering a true off-road performance truck with the proven ‘Built Ford Tough’ capability and durability that is at the core of every F150 and the best in performance thanks to the team at SVT.”
“Like its fighter jet and dinosaur namesakes, the F150 SVT Raptor is tough, fast, aggressive, and built with the off-road enthusiast in mind,” he added.
Ford and off-road racing
Desert off-road racing is something Ford knows and does well, with eight championships in nine divisions in the 2007 “Best In The Desert” series and four more titles in CORR (Championship Off Road Racing). Ford has also shown its dominance at the Baja 1000 race – 12 Ford-powered vehicles have won the overall title for four-wheel vehicles, the most of any engine manufacturer.
With interest in off-road performance growing at a steady rate, the F150 SVT Raptor was built to fulfill the desires of that highly demanding market. The high-performance off-road truck market is one that’s largely untapped, allowing the Ford F150 SVT Raptor to set the bar for this type of vehicle.
“Most of the major manufacturers have focused on-road performance, so when we looked at what was available in off-road truck performance, it was somewhat limited,” said Mark Grueber, Ford product marketing manager for pickups and large SUVs. “This was the perfect opportunity for Ford to further differentiate the F150 from other trucks on the market.”
Looks tough and fast
The tough, chiseled look of the new Ford F150 has been taken to a new level with F150 SVT Raptor. The agile, performance truck was designed to give the impression it is always on the move.

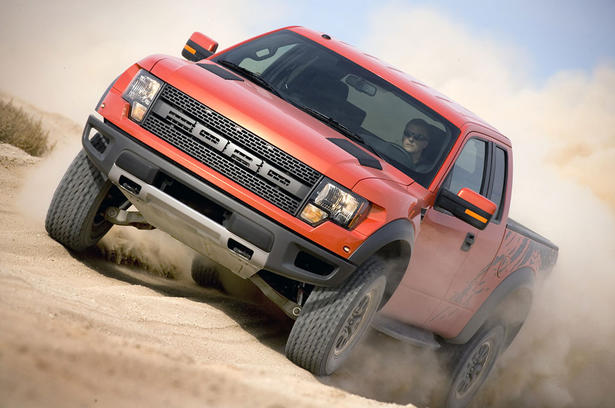

Noticeable differences between the Ford F150 SVT Raptor and conventional F150 include a distinctive grille that has the Ford name carved into it; front bumper, vented hood, front fascia and fenders, functional hood extractors, fender extractors with ‘SVT’ bored out, as well as visible FOX Racing Shox, the only internal bypass shocks available on a street truck.
Another key difference between the F150 SVT Raptor and the base F150 is it is more than seven inches wider. Ford designers took advantage of this difference and highlighted it with distinctive marker lamps. When turned off, the marker lamps are well-integrated into the F150 SVT Raptor’s front end, as opposed to on top of the cab. When lit up, Raptor’s imposing stance is immediately recognizable.
While the exterior design of the F150 SVT Raptor is about creating an image, the interior design is about creating the feel of the truck, and both must complement each other.
Design elements from the unique grille and front fascia have been carried through to the interior on the console and dashboard. The steering wheel is wrapped in black leather and features a molten-orange leather strip that serves as a centering sight line – which is especially useful in extreme driving maneuvers that can often cause the driver to lose perspective of the steering wheel’s center point.
Revved up and ready
The Ford F150 SVT Raptor is powered by the F150’s proven 5.4-liter Triton V-8 three-valve engine, which delivers 320 horsepower and 390 lb.-ft. of torque. A new open-valve fuel injection strategy improves the air/fuel charge conditions in the combustion chamber, allowing greater spark advance at higher loads and engine speeds. This delivers increased horsepower during towing and higher rpm operations, lower emissions and more efficient use of fuel.
A new 6.2-liter V-8 engine will be available after launch. The 6.2-liter engine features all-new architecture specifically designed for robustness in a truck application.
Given reliability and longevity under harsh conditions are key to truck customers, the Ford team performed extensive testing to ensure the 6.2-liter V-8 engine would live up to the ‘Built Ford Tough’ promise. Fifty 6.2-liter V-8 engines successfully endured more than a dozen of the toughest engine tests at Ford’s dynamometer lab during development.
SVT used a specially designed, 62-mile durability loop in the desert of Borrego Springs, Calif., to replicate the conditions of the Baja 1000 race, to further test the engines’ performance.
Take off and landing
Building a high-performance off-road truck is not about the horsepower – it’s about the suspension. The F150 SVT Raptor doesn’t disappoint, with 13.4 inches of usable travel in the rear suspension and 11.2 in the front.
“With the F150 SVT Raptor, we changed the axle, the whole front suspension is different – new upper A arm, new lower A arm, new tie rod, new half-shaft joints,” said Jamal Hameedi, Ford SVT chief engineer. “It’s well beyond what SVT has ever done with one of our vehicles.”
Raptor’s wider track and softer suspension mean it will comparatively glide over obstacles. And when it has to be “launched,” be prepared for a soft landing. “The suspension does all the work to keep the truck’s attitude stable,” Hameedi said.
In addition to a beefed up suspension, the F150 SVT Raptor also boasts unique internal bypass Fox Racing Shox, the only internal bypass shocks on a street truck. The position sensitive dampening internal bypass feature allows the shock to become significantly stiffer as it travels, preventing the truck from bottoming out.
By working with Fox internal bypass technology and applying the Ford engineering methodology, there haven’t been trade-offs to assure extreme off-road handling over on-road ride comfort.
“This truck is also going to be a daily driver. We brought together a lot of experts to ensure the on-road steering precision and comfort was there, too,” said Hameedi. “That’s where Ford expertise really came to the table and complemented Fox’s off-road expertise.”
A tough truck needs tough tires, and a BF Goodrich All-Terrain TA/KO 315/70-17 tire does the job.
To help improve the tire in a variety of conditions, the compound of the tread was altered. Engineers made the rubber softer for better performance on and off-road and for precise and predictable steering in a variety of conditions while the interior of the tire was modified to improve lateral firmness.
The tall sidewall on the 35-inch tire can handle rocks and irregular surfaces commonly experienced in an off-road environment. A 17-inch cast aluminum wheel is designed to absorb the impact of objects the truck could encounter in some of the most extreme environments.
Specialized Technologies
The F150 SVT Raptor provides the complete package for off-roaders, including state-of-the-art technologies to keep it at the top of capability.
“For many years, enthusiasts have been struggling with the performance of electronic technologies in the extreme off-road environment since that was not the environment they were designed for,” Hameedi said. “What SVT has done is tailor technology to function in both an on-road and an extreme off-road environment.”
Technologies include:
AdvanceTrac® with RSC® (Roll Stability Control™) predicts the vehicle’s path using a sensor to detect and measure oversteer and yaw by monitoring the vehicle’s speed, throttle position and steering wheel angle. When the system senses wheel slip or the loss of traction, it applies braking where needed to keep the truck tracking safely on its intended path. If a significant roll rate is detected, the system applies additional countermeasures to enhance vehicle roll resistance.
The off-road enthusiast has the option to switch to two available settings – sport mode and full off-road mode depending on their driving situation. The sport mode shuts off traction control enabling the vehicle to have more yaw movement.
Full off-road mode shuts off all electronic stability programs and the ABS system switches to a special off-road setting. Widening the threshold of sport mode, the wheels will lock more which is helpful in off-road terrain. Also in full off-road mode, the locking rear differential is allowed to stay locked at elevated speeds to mimic a spool differential found on racing trucks.
Trailer Sway Control works in conjunction with AdvanceTrac with RSC and can determine from the yaw motion of the truck if the trailer is swaying and take measures – such as applying precise braking or reduced engine torque – to bring both vehicle and trailer under control.
Integrated Trailer Brake Controller is factory-installed and allows direct operation of the trailer’s electronic brakes by squeezing the control module on the instrument panel with more confidence than the typical aftermarket system.
Electronic Locking Differential uses a true mechanical connection to lock the left and right axle shafts together so both turn at the same speed with the same amount of torque. This switch-controlled feature maximizes traction capability at the wheel with grip, without having to stop the truck.
Hill Descent Control on the F150 SVT Raptor is Ford’s first application of the technology. Utilizing ABS, the driver can control hill descent without applying the brakes. The speed is set for the truck to descend the hill by pushing a button and allows for the driver to concentrate on driving, rather than on how to modulate the brakes on a steep decline.
Off-Road Mode engages a third throttle map and a third shift schedule for improved off-road performance. Third throttle map alters the throttle by changing the driver demand table so it is better suited to high and low-speed off-road driving conditions. A third shift schedule is a unique strategy for the off-road environment that holds the transmission in each gear for a longer period of time, allowing better engine throttle modulation to control the vehicle.
Auxiliary Switch Board on the center console makes aftermarket customization easier, with four prewired switches attached to the power distribution box for electrical accessories. Also located on the auxiliary switch board are two switches for improved off-road performance – Hill Descent Control and Off-Road Mode.
The F150 SVT Raptor will be built along side the new F150 at Ford’s Dearborn Truck Plant at the historic Rouge Center in Dearborn, Mich.
The Ford F150 SVT Raptor, Ford’s new king of the off-road just found a best friend. The Ford F150 SVT Raptor R, which features modified components, was developed by SVT and Ford Racing specifically to race in the Tecate SCORE Baja 1000 – one of the most grueling off-road races on the circuit.
“Ford’s commitment to using racing as a test bed for new technologies is expanding to the off-road arena with the F150 SVT Raptor R,” said Brian Wolfe, Ford Racing Technology director. “Racing the new truck in the elite Baja 1000 is the ultimate off-road test and will allow Ford to evaluate how well the F150 SVT Raptor will hold up under the most unique and extreme conditions.”
Prepared for racing in long distance off-road endurance events, the Ford F150 SVT Raptor R uses stock components of F150 SVT Raptor, including the transmission, brakes and axles. The frame – the part of the truck that will take the most stress – is the same proven fully boxed frame that delivers class-leading towing and hauling in the base F150. The race truck is powered by a specially calibrated 500 horsepower, 6.2-liter V-8 engine.
While the Ford F150 SVT Raptor has off-road capability that isn’t available in any other production vehicle, the F150 SVT Raptor R adds to that capability with enhancements to prepare it for one of the world’s best-known off-road races.
“The race truck has even more suspension travel, better approach and departure angles, more horsepower, more ground clearance, and full racing specification seats, safety cage and harnesses, all of which combine to make an even faster, more visceral off-road experience,” said Jamal Hameedi, SVT chief engineer.
Even if the typical Ford customer will not be putting their truck through the punishing paces of the Baja 1000, the point is this, they could.
“You can say the average customer is not likely to take their vehicle and enter it in the Baja 1000, but if you look at the things that happen in that 1000 kilometer race, over the life of a vehicle, you just might repeat those events,” said Hameedi. “Maybe not all in one day, but over that 100,000 miles, knowing the vehicle will stand up to the Baja 1000 is important to off-road enthusiast customers.”
The Ford F150 SVT Raptor R not only emulates the ‘Built Ford Tough’ motto with its toughness and capability, but it also shows the level of high-performance vehicles that SVT develops.
“Raptor R is a natural SVT extension of the Ford F150 SVT Raptor,” said Hameedi. “It’s very analogous to what a race prepped Cobra R was to an SVT Cobra or what a Mustang FR500C is to a Mustang GT.”
The Ford F150 SVT Raptor R in the Baja 1000 also serves as a test bed for the development of a lineup of race-proven, desert-tested, off-road performance parts that will be available through the Ford Racing catalog.
Ford Truck Motorsports has a successful past in off-road racing, sponsoring the desert endurance racing series “Best-in-the-Desert” with Ford trucks serving as the official vehicle.
Ford is bringing some of the best stock class off-road truck drivers together to drive the F150 SVT Raptor R in the Baja 1000.
The team includes driver of record Steve Oligos and co-drivers Randy Merritt, Greg Foutz and Bud Brutsman who will compete in class eight for moderately modified full-size pickup trucks.
The Baja 1000 will run from Nov. 20-23. The intense off-road endurance race runs from sea level to 7,000 ft. altitude over 1,000 kilometers of sand, rock and mountain passes on the Mexican Baja Peninsula.
