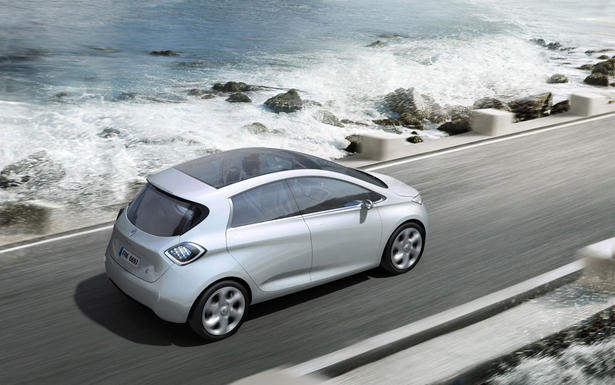

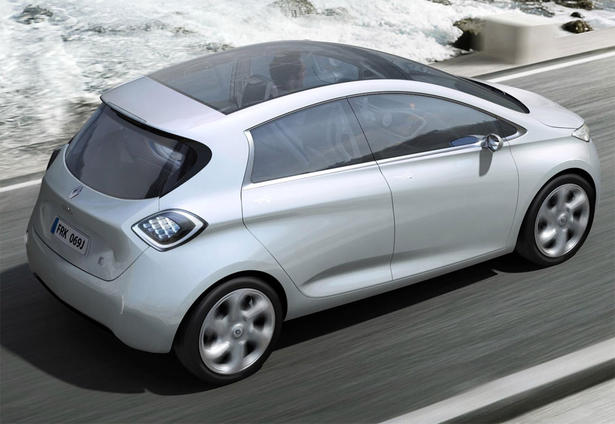

The Renault Zoe concept has been unveiled today in Paris previewing the general desing lines of the next generation Clio. The Renault Zoe concept is an electrci car, powered by a a 60kW (80hp) motor that develops 222Nm of torque. The Renault Zoe is a four-door concept that measures 4.10 metres in length and sits on, massive for its size, 19 inch rims. The manuafcturer says that a full charge of the battery powering the Renault Zoe will take between 3 and 8 hours, however you can achieve 80% of the capacity in 30 minutes. If you only need a range of up to 37 miles, you'll need to re-charge your Renault Zoe for 10 minutes, which could be quite usefull.
The Renault Zoe measures 1,788 m in width and 1,540 m in height and has a 2,575 m wheelbase.
The electrci motor of the Renault Zoe sends its power to the front wheels via a Direct drive with reducer and forward/reverse inverter transmission and has a range of up to 160 km on a full charge.
The performance figures of the Renault Zoe say it can reach 100 km/h in 8.1 seconds and that it has a top speed of 135 km/h.
Renault Press Release:
RENAULT Renault ZOE PREVIEW: THE RELAXING, ZERO-EMISSION1
EVERYDAY CAR
Renault Renault ZOE Preview provides a realistic glimpse of the forthcoming mass-market Renault
electric car of the same name.
- A Clio-sized car featuring Renault’s new brand identity, including the new front-end
signature.
- Renault ZOE Preview benefits fully from Renault’s electric vehicle expertise:
o It combines specific electric vehicle features
(fully-integrated battery, compact
motor) with range management and optimisation aids
o It packs everything expected of a B-segment car, including a roomy interior, a
spacious boot, manoeuvrable handling in built-up areas, reassuring road
holding when motoring out of town and, of course, attractive looks.
- Renault Renault ZOE Preview’s equipment package is tailored to pamper its occupants:
o A climate control system incorporating humidity level adjustment,
o A toxicity sensor for cleaner cabin air,
o An active relaxing or stimulating scent diffuser,
o Light therapy thanks to light emitted by the central display screen.
Renault Renault ZOE Preview’s fluid, sensuous lines demonstrate that electric cars can not only be
attractive but that they can also be enjoyable daily drivers. The vehicle on display at the Paris
Motor Show is a near-definitive representation (90 per cent) of the vehicle that will be
manufactured at Renault’s Flins plant, France. Its launch is scheduled for mid-2012.
Electrifying looks
Renault ZOE Preview is evidence that
'zero-emission' cars can combine sensuous, reassuring, sculpted styling
with the promise of real driving enjoyment.
The forward position of its windscreen and the teardrop form of its rear end emphasise the impression
of fluidity, while its specific electric-car architecture permit a blunt bonnet and an intake-free front-end
which contribute to its compact footprint and efficient aerodynamics.
It stands at just 4.10 metres in length and is powered by a 60kW (80hp) motor with torque of 222Nm
that enables it to zip silently through city traffic. Renault ZOE Preview is also ideal for out-of-town journeys
thanks to its 19-inch wheels and reassuring, profiled flanks.
1
Zero emissions during road use, excluding wear parts
23
Renault Renault ZOE Preview’s battery can be charged in one of three ways:
- Standard charge: This will be the most common method of charging. The Z.E. would be
charged at home or at a publically-accessible charging point. A full charge will take between
3.5 and 8 hours, depending on model (Twizy, 3.5 hours and Kangoo Z.E., Renault ZOE Preview and
Fluence Z.E. between 6 and 8 hours). For charging at home there are two methods: either a
connection via a Wall-Box (this protects the domestic circuit) or an EVSE (Electric Vehcile
Supply Equipment) offered as an option. The recommended option is the Wall-Box with the
advantages of ergonomics, speed, load optimisation and protection of both the domestic
circuit and the vehicle.
- Fast charge: In emergency, when the customer needs to charge the battery quickly, they can
connect via a public fast charge point. This will give 37 miles range in less than 10 minutes or
80% battery capacity in 30 minutes. Quickcharge will be available on Renault ZOE Preview and, at a
later date, on Fluence Z.E. and Kangoo Express Z.E..
- Quickdrop battery exchange stations: In some countries, Quickdrop battery exchange
stations will be available. The customer will be able to change his depeleted battery for a
fully-charged battery in just three minutes. This scheme is currently planned in Israel and
Denmark, in partnership with Better Place.
A ’Spa Car’ for the ultimate relaxing ride
Renault Renault ZOE Preview’s equipment package is geared to ensuring the wellbeing of its
occupants:
- Skin hydration: conventional air conditioning systems can have a dehydrating effect on
skin during longer journeys, but Renault ZOE Preview's smart climate control system automatically
adjusts the humidity level inside the car to optimise the comfort of its occupants.
- Detox effect: a toxicity sensor monitors air quality and automatically closes the air
vents if necessary. Harmful substances are trapped in the cabin filter to ensure that cabin
air stays clean at all times.
- Stimulating or relaxing scent diffuser: an electric system actively releases different
scents depending on the needs of the moment (e.g. a relaxing fragrance during the drive
home from work or, on the contrary, a scent to stimulate driver vigilance when travelling at
night).
This triple-effect system has been developed in association with Biotherm®, the skin
biology brand of L'Oréal's Luxury Products Division.
- Audio ambience: special music has been selected in partnership with specialist agency
Creative Diffusion, which is associated with Qwartz (International New Music Awards), to
harmonise the audio and relaxing experience inside the car.
- Light therapy: the central screen exudes a light that stimulates the energy of occupants
and further enhances the impression of wellbeing. This feature forms part of a joint-project
with the world-renowned light therapy specialist, Philips.
24
Renault Renault ZOE Preview . Technical Specification
DIMENSIONS
Standard rims (inches) 7 J 19
Length (mm) 4,086
Width (mm) 1,788
Height (mm) 1,540
Wheelbase (mm) 2,575
Front track (mm) 1,578
Rear track (mm) 1,578
Front overhang (mm) 815
Rear overhang (mm) 696
Kerb weight (kg) 1,392
Tyres Specific Michelin tyres
205/45R19 (1)
Boot volume (dm3) (VDA) 292
MOTOR
Type Electric
Transmission Direct drive with reducer and
forward/reverse inverter
Power EEC (kW/hp) 60/80
Torque EEC (Nm) 222
BATTERY
Type Lithium-ion
NEDC combined cycle range (km) 160
STEERING AND BRAKES
Power steering Electric, variable rate
Turning circle (between kerbs) (m) 10.35
Parking brake Electric
PERFORMANCE
Aerodynamic coefficient (CdA) 0.29
Top speed (Kph) 135
0-100kph (s) 8.1
(1) The Michelin tyres are specific to the car. They contribute to optimising the vehicle’s range and TCU (Total Cost of Usage)
and were developed specifically for Renault ZOE within the framework of the joint‐innovation contract signed by Renault and
Michelin.
